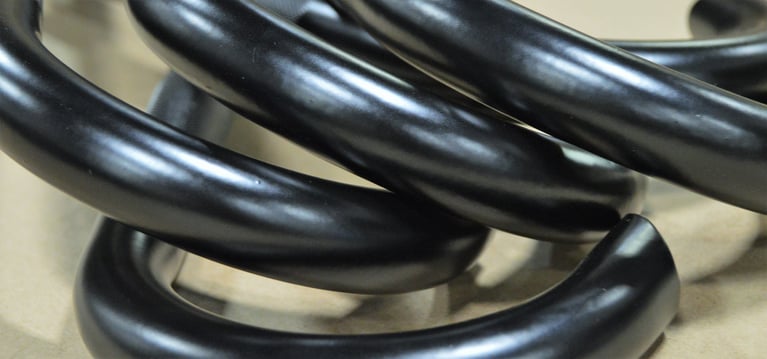

Dark steel tubes bent into a curved shape

This guide to tube bending formulas will help you optimize your tubular components. Download the full guide here for a complete list of dos and don'ts.

If you have any questions about designing for tube bending, feel free to contact us directly.

Tubing Bending Formulas & Common Terms


Download full design guide

Guide- Designing for Tube Bending Final-1.png

Guide- Designing for Tube Bending Final (3)-1.png
DOWNLOAD FULL DESIGN GUIDE



common terms & Constants

  1.  Centerline Radius (CLR) - the neutral line; will not stretch or compress during bending
  2.  Outer Diameter (OD)  - length and width of tube measured from the outside wall
  3.  "D" of Bend - ratio between CLR and outside diameter
  4.   Wall Thickness (WT) - thickness of tube wall measured in inches or millimeters
  5.  Gauge - thickness of tube wall as a standard integer (0.049" WT = 18 gauge)
  6.  Ovality - difference between max OD and min OD on a bend section
  7.  Inside Bend Radius (intrados) - measurement of the inside curve of a bend
  8.  Outside Bend Radius (extrados)measurement of the outside curve of a bend



Common Methods for Defining Tube Shapes

1.  XYZ Method

General method for defining tube shape, based on three-dimensional mathematical planes. Used alongside LRA method to optimize design for production.

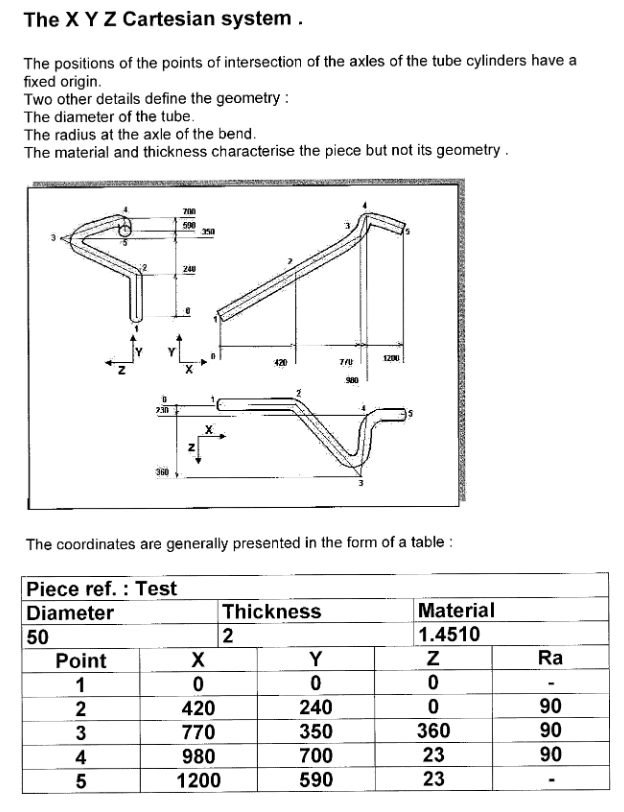

Image from Ercolina CNC

2.  LRA or Bend Data Method

Common method of defining tube shapes when bending is involved. Complements XYZ measurements. Uses three elements to define shape: DBB, DOB, and POB.

L / DBB: distance between bends; where one bend ends and another starts to curve

R / POB: plane of bend; rotational relationship between one bend plane and the next; defined in degrees

A / DOB: angle of bend, measured in degrees

useful equations

  1. "D" of Bend:  CLR / OD

  2. Inside Diameter:  OD - (WT - 2)

  3. Inside Radius:  CLR - (OD / 2)

  4. Outside Radius:  CLR + (OD / 2)

  5. Wall Factor:  OD / WT

  6. Extrados Wall Thinning %:  (Outside Radius - CLR) / Outside Radius

  7. Percentage Elongation at Arc of Bend:  (Outside Radius / CLR) - 1

  8. Ovality:  Max OD - min OD
